10W-15W uv laser

Laser engraving glass, RFH has water-cooled and air-cooled high power UV lasers for your choice

RFH high-power UV laser is non-contact marking in glass engraving, and will not be limited by the fatigue life of general mold marking. The maintenance cost is extremely low in mass production and processing applications, so it is very suitable for flying production methods .

  • Laser Wavelength:

    354.7nm
  • Average Output Power :

    10W/12W/15W @40kHz
  • Pulse Width:

    <20ns @40kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Spatial Mode:

    TEM00
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter:

    0.8±0.1mm Measured at window
  • Beam Full Divergence Angle :

    <2mrad
  • Beam Circularity:

    >90%
  • Pulse-To-Pulse Stability:

    <3% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift:

    <25μrad/℃
  • Polarization Ratio:

    >100:1
  • Polarization Orientation:

    Horizontal
  • Operating Temp. & RH:

    10℃ to 35℃ | <80%
  • Storage Temp. & RH:

    10℃ to 35℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption:

    <800W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

Laser engraving glass, RFH has water-cooled and air-cooled UV lasers for your choice



Laser glass engraving can leave the required traces on the glass surface. Whether it is glass supplies or glass handicrafts, laser engraving can achieve good cutting effects. It is the most important technology for glass engraving at present.



RFH high-power UV laser is non-contact marking in glass engraving, and will not be limited by the fatigue life of general mold marking. The maintenance cost is extremely low in mass production and processing applications, so it is very suitable for flying production methods .

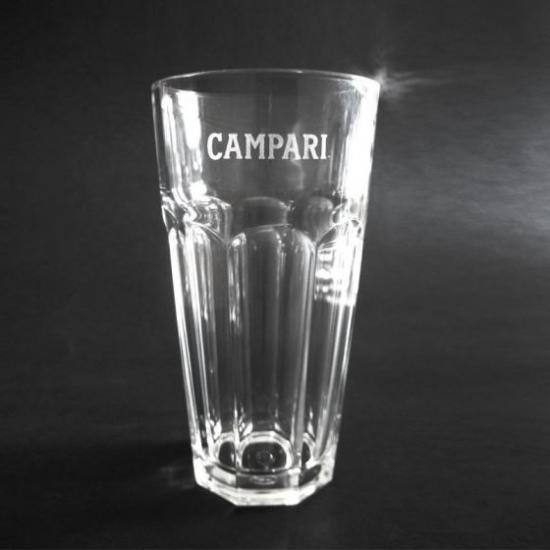

15watt high power uv laser etching,marking white on glass

Secondly, the RFH ultraviolet laser is easy to operate, can be connected to a variety of machines, and can be controlled through software and hardware, and can also be connected with an external microscope to observe the specific processing conditions.



In addition, RFH UV lasers have a variety of powers, and there are many powers that can be selected according to the characteristics of glass. Expert III 355 series 15w UV lasers are the most suitable power for RFH’s engraving technology at present. It can be adjusted in various ways, air-cooled and water-cooled Under the combined effect, the operation is stable, the positioning system is standard, and the accuracy exceeds that of similar products currently on the market. It has a wide range of applications, is flexible and wear-resistant, and greatly reduces the cost.



RFH UV lasers have good applications for glass engraving, marking, cutting and even internal engraving technology, and can be used for multiple purposes. Compared with the traditional technology in the past, it is more suitable for the production of contemporary glass, and has been favored by many customers.



Expert III 355 series ultraviolet semiconductor pump pulsed solid-state laser adopts unique laser cavity design, acousto-optic Q-switching technology, and high-precision cooling system, small size and high integration. It has short pulse width (<20ns@40k), superior beam quality (M²<1.2) and perfect spot characteristics (spot ellipticity>90%). Widely used in PE/PCB/FPC cutting, glass, sapphire cutting, and high-precision micromachining for drilling, scribing, cutting and other fields. 1. The laser wavelength is 354.7nm, and the repetition rate covers a wide range (single pulse to 200kHz) 2. Superior beam quality (M2<1.2), strictly guaranteed in all frequency ranges; pulse width<20ns@40k, heat impact during processing 3. The unique Q-switching control technology is suitable for various laser application control requirements; the inner cavity self-purification system makes the laser have a long life and stable operation. 4. All-digital intelligent power control technology, simple operation and convenient monitoring 5. Support communication with computer, external control of laser through RS232 6. Integrated design, convenient for equipment integration
