10W-15W uv laser

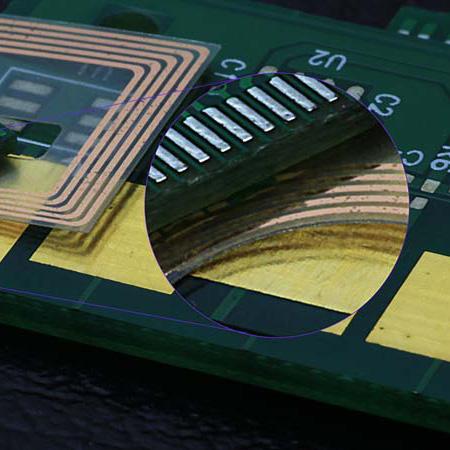

what is UV laser cutting PCB

UV laser cutting is a precise and efficient method for cutting PCBs. To use a UV laser to cut a PCB, you will need a UV laser cutting machine and a CAD file of the PCB design. Here are the basic steps for using a UV laser to cut a PCB:



  • Laser Wavelength:

    354.7nm
  • Average Output Power :

    10W/12W/15W @40kHz
  • Pulse Width:

    <20ns @40kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Spatial Mode:

    TEM00
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter:

    0.8±0.1mm Measured at window
  • Beam Full Divergence Angle :

    <2mrad
  • Beam Circularity:

    >90%
  • Pulse-To-Pulse Stability:

    <3% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift:

    <25μrad/℃
  • Polarization Ratio:

    >100:1
  • Polarization Orientation:

    Horizontal
  • Operating Temp. & RH:

    10℃ to 35℃ | <80%
  • Storage Temp. & RH:

    10℃ to 35℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption:

    <800W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

UV laser cutting is a precise and efficient method for cutting PCBs. To use a UV laser to cut a PCB, you will need a UV laser cutting machine and a CAD file of the PCB design. Here are the basic steps for using a UV laser to cut a PCB:

1. Convert the PCB design file into a format readable by the laser cutting machine, such as Gerber or Excellon format.



2. Load the PCB into the laser cutting machine and secure it in place.



3. Set the parameters for the laser cutting machine, such as the laser power and cutting speed, based on the specifications of the PCB design and the material being used.



4. Start the laser cutting machine and let it cut the PCB according to the design file.



5. Once the cutting is complete, remove the PCB from the machine and inspect it for any errors or defects.



Overall, UV laser cutting is a highly accurate and efficient method for cutting PCBs and can be particularly useful for creating complex designs.
