10W-15W uv laser

The Art of High Power UV Pulsed Laser Marking Multicolor Automotive Relays

The automotive world is constantly evolving, with new advancements and technologies emerging every day. One such innovation that has recently taken the industry by storm is the high power UV pulsed laser marking technique for multicolor automotive relays. This revolutionary method combines elegance and functionality, pushing the boundaries of what is possible in the field of automotive manufacturing.

  • Laser Wavelength:

    354.7nm
  • Average Output Power :

    3W-10W @30kHz
  • Pulse Width:

    <12ns @ 30kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter :

    0.8±0.2mm Measured at window
  • Beam Full Divergence Angle :

    <2mrad
  • Beam Circularity :

    >90%
  • Pulse-to-Pulse Stability :

    <2% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift :

    <30μrad/℃
  • Polarization Ratio :

    >100:1
  • Polarization Orientation :

    Horizontal
  • Operating Temp. & RH :

    10℃ to 30℃ | <80%
  • Storage Temp. & RH) :

    -20℃ to 65℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption :

    <500W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

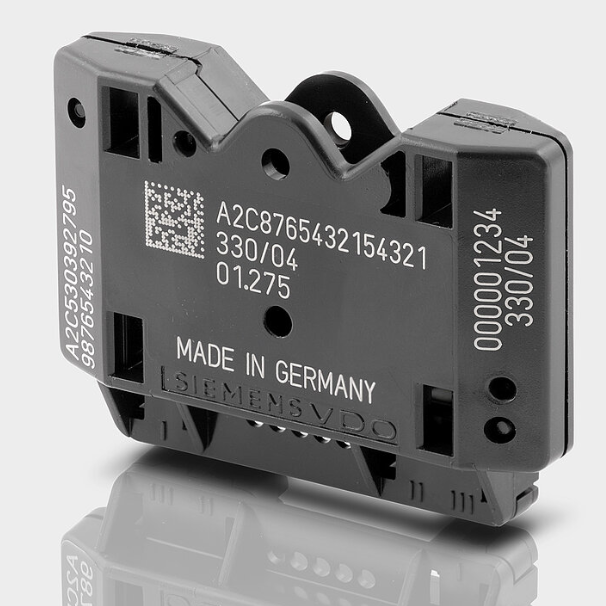

The Art of High Power UV Pulsed Laser Marking Multicolor Automotive Relays

The automotive world is constantly evolving, with new advancements and technologies emerging every day. One such innovation that has recently taken the industry by storm is the high power UV pulsed laser marking technique for multicolor automotive relays. This revolutionary method combines elegance and functionality, pushing the boundaries of what is possible in the field of automotive manufacturing.



Traditionally, automotive relays have been marked using traditional printing methods or low-power laser marking techniques. However, these methods often lacked durability and precision, leading to issues such as fading or illegible markings over time. The introduction of high power UV pulsed laser marking has changed the game entirely.



By utilizing a 5W UV nanosecond laser from RFH, this groundbreaking technology has revolutionized the field of SLA 3D printing. The high power UV pulsed laser can efficiently remove excess coatings from plastic materials, allowing for personalized and creative designs to be intricately engraved on the surface. This results in durable and aesthetically pleasing markings that withstand the test of time.



The art of high power UV pulsed laser marking multicolor automotive relays opens up a whole new realm of possibilities for manufacturers. With this technique, automotive relays can now be marked with multicolor designs, logos, or even customized patterns, adding a touch of elegance and uniqueness to each part. Gone are the days of monotonous and generic markings – now, automotive relays can truly make a statement.



The impact of high power UV pulsed laser marking on the automotive industry cannot be overstated. This technique drives manufacturers into uncharted territory, unleashing a wave of creative potential. The ability to add intricate and personalized designs to automotive relays not only enhances their aesthetic appeal but also provides valuable branding opportunities for companies.



We are on the cusp of a bright and exciting future, where the fusion of innovation and elegance in high power UV pulsed laser marking sets the stage for limitless possibilities. As this technology continues to evolve and refine, we can anticipate a revolution in the automotive industry, where every automotive relay becomes a work of art.



Embrace the power of high power UV pulsed laser marking, and witness the transformation of the automotive industry. Let us venture together into a future full of surprises and endless potential.
