Swiss customer purchased RFH 5w UV laser for glass frosting, replacing traditional process
Frosted glass is widely used in modern construction and decoration industries. Whether it is bathroom or glass, frosting can protect privacy. How to produce more efficient frosting technology for glass has become a lot of frosted glass. manufacturer's troubles.
How to achieve glass frosting?

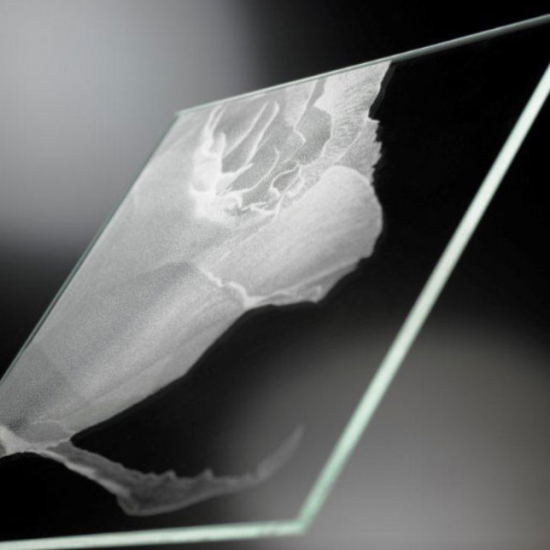

Laser frosted glass uses ultraviolet laser equipment to irradiate the smooth glass surface with high-energy laser beams to the glass surface to vaporize the glass surface to form a textured effect, thereby increasing the surface roughness and reducing the light transmittance. The frosted glass processed by ultraviolet laser has a shallow depth of processing area, the glass strength attenuation is small, and the effect is beautiful.
A customer from Switzerland communicated with RFH's sales manager via video some time ago, and ordered an RFH 5w UV laser to travel across the ocean to produce frosted glass, and this UV laser replaced the previous production process.
What are the advantages of UV laser for glass frosting?
1. Ultraviolet lasers use extremely small spots for frosted glass production. High-quality beams and small spotlights enable them to meet the requirements of ultra-fine frosting for glass products, and the minimum positioning accuracy can reach about 0.2mm.
2. In addition, the ultraviolet laser has a high absorption rate on the processed object, and it can be well produced on the glass material, and the thermal influence is almost negligible. The absence of the thermal effect also allows the material to remain stable under the super strong ultraviolet laser Complete without breaking.
The combination of high-speed production and high-quality craftsmanship results in a very smooth frosted glass without burrs. In addition, the production process of RFH lasers is completely dust-free. For developed countries like Switzerland, it can also meet their environmental protection conditions and meet production requirements.
It has been several years since RFH UV lasers have been exported overseas, and the constant feedback is that they are very satisfied with RFH's products, and thank RFH for bringing greater benefits. RFH also takes this as an encouragement to work harder to fulfill customer expectations and industry expectations in future operations.
S9-Y series solid state pulsed UV laser is ultra compact. The whole part of power supply is integrated into the laser head. This makes the size of the laser more smaller, and the integration into a system more easier and convenient. S9-Y series is of short pulse width(<12ns@30k)，superior beam quality(M²<1.2) and perfect laser sport quality(beam circularity>90%).
S9-Y series uv laser characteristics：
1. 355 nm output wavelength, Up to 200 Hz repetition rate; laser power ranging from 3w-10w; Continuous tuning of repetition rate while maintaining constant pulse energy, superior beam pointing and energy stability make the S9-Y the first choice for micromachining, marking and thin film removal applications
2. Exceptional beam quality (M²<1.2) ，absolutely assured in all repetition rates; relatively short pulse width <12ns@30 with little heat transfer to surrounding material; perfect beam spot quality(Beam Circularity>90%)
Close to Gaussian smooth beam profile with low value M² < 1.2 and good focusability are beneficial for applications such as
3. Unique Q-switching technology, adapts a variety of control requirements of laser applications;Online refreshment for harmonic coupling technology;Excellent long term power stability Rugged sealed cavity, Extremely compact size, Simple and robust
4. Digital control technology for the driver, RS232 control interface ensures easy control and integration with laser marking equipment
5. This laser adopts one - style design with compact and reasonable structure, easy installation.
Easy to transport and saves space due to compact and light design
Water cooling，cost-effective and reliable end-pumping technology and amplifier-free DPSS design guarantee easy operation and alignment simple installation and low maintenance costs
6. Industrial production process control technology,provides quality stable products.
RFH - The leading industrial solid-state laser manufacturer
For over 13 years with excellent long term stability and exceptional good beam quality
Production in dust-free plant & rigorous quality control system
From purchasing, pre-production quality check, assembling, finished product testing, warehouse-in inspection, pre-delivery testing to after-sales service, each step is under control to make sure product quality and consistency in both machine parameters and actual running parameters. This is what makes RFH laser lasts longer than its peers.
The whole part of power supply is integrated into the laser head
Core components of oversea brands with guaranteed quality
Pumping, Q-switching and other core components adopt oversea brands. Work with top brand component suppliers of home and abroad. Each component is guaranteed with its quality from the beginning of materials purchasing. This is why users can trust RFH laser.
UV laser+cooling system sold in a group
Being client-oriented, RFH offers proposal of selling the whole laser system in a group so that the laser system can maximize its performance while maintaining its stability.
Full-digital display, supporting communication with computer, capable of laser’s remote control
Each laser developed and produced by RFH can always remain high quality in industrial and extreme conditions of scientific research. With stable beam quality, high efficiency, best cost performance and high reliability, RFH has earned good reputation in different industries at home and abroad. After 12-year development, RFH has become a reputed brand in nanosecond laser industry.
