10W-15W uv laser

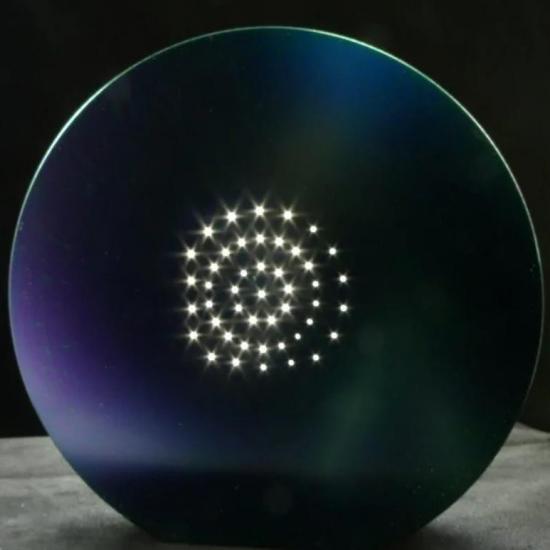

RFH 355nm ultraviolet laser engraving the QR code of sapphire chip

In the realm of technological advancements, the applications of lasers continue to push the boundaries of innovation. Among these cutting-edge solutions, the RFH 355nm ultraviolet laser shines bright, revolutionizing the art of engraving QR codes on sapphire chips.



  • Laser Wavelength:

    354.7nm
  • Average Output Power :

    10W/12W/15W @40kHz
  • Pulse Width:

    <20ns @40kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Spatial Mode:

    TEM00
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter:

    0.8±0.1mm Measured at window
  • Beam Full Divergence Angle :

    <2mrad
  • Beam Circularity:

    >90%
  • Pulse-To-Pulse Stability:

    <3% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift:

    <25μrad/℃
  • Polarization Ratio:

    >100:1
  • Polarization Orientation:

    Horizontal
  • Operating Temp. & RH:

    10℃ to 35℃ | <80%
  • Storage Temp. & RH:

    10℃ to 35℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption:

    <800W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

Illuminating Sapphire: The Unrivaled Precision of RFH 355nm Ultraviolet Laser Engraving QR Codes

355nm Ultraviolet Laser Engraving QR Codes

In the realm of technological advancements, the applications of lasers continue to push the boundaries of innovation. Among these cutting-edge solutions, the RFH 355nm ultraviolet laser shines bright, revolutionizing the art of engraving QR codes on sapphire chips.



Unleashing the Power of Precision:

Harnessing an impressive 5W of laser power, the RFH 355nm ultraviolet laser offers an unparalleled level of accuracy and control. With its remarkable ability to penetrate even the most resilient materials, such as sapphire, this laser becomes an exquisite tool for engraving intricate QR codes with unprecedented precision.



Unlocking New Dimensions:

Sapphire, renowned for its hardness and exceptional clarity, has long been a preferred choice for essential applications in various industries. With the introduction of RFH 355nm ultraviolet laser engraving, this remarkable material meets its destined match, as QR codes elegantly come to life on the surface of sapphire chips. Whether it be in the realm of electronics, aerospace, or medical devices, the fusion of sapphire and the RFH laser offers limitless possibilities.



Unleashing Boundless Creativity:

The adaptability of the RFH 355nm ultraviolet laser knows no bounds. It effortlessly engraves QR codes onto not only sapphire chips but also a wide range of materials, including metals, glass, and plastics. This versatility allows industries to embrace this single laser solution for multiple engraving needs, streamlining production processes and reducing costs.



The Importance of Precision Engraving:

In today's fast-paced and technology-driven world, the significance of precise and permanent engraving on QR codes cannot be overstated. The RFH 355nm ultraviolet laser ensures the longevity and readability of these codes, even in demanding environments. From inventory tracking to product authentication, the integrity of QR codes engraved by the RFH laser withstands the test of time, bolstering the reliability of crucial information.



Embracing a Quantum Leap:

The advent of RFH 355nm ultraviolet laser engraving on sapphire chips marks a significant leap in the evolution of QR code technology. It propels industries forward, empowering them with a tool that seamlessly integrates aesthetic appeal, precision, and durability. As we venture into an era where seamless connectivity and information accessibility are paramount, the RFH laser serves as a beacon, guiding us towards a brighter and interconnected future.



In conclusion, the RFH 355nm ultraviolet laser paves the way for a new paradigm of QR code engraving, illuminating the possibilities on sapphire chips and beyond. Its unrivaled precision, adaptability, and reliability set the stage for transformative advancements across various industries. With the marriage of cutting-edge technology and timeless elegance, the RFH laser redefines the boundaries of possibility, one QR code at a time.
