10W-15W uv laser

RFH 10W UV laser Cold light source precise cutting fabric

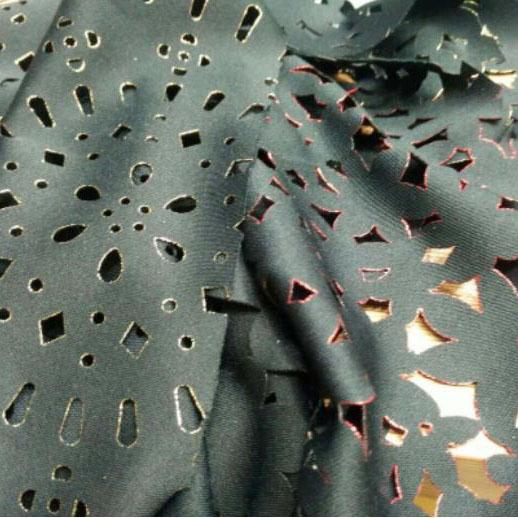

UV laser -cut fabrics can show unique texture and visual effects, enhance the three -dimensional and layered sense of clothing, and also reflect the sense of future sense and fashion.

  • Laser Wavelength:

    354.7nm
  • Average Output Power :

    3W-10W @30kHz
  • Pulse Width:

    <12ns @ 30kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter :

    0.8±0.2mm Measured at window
  • Beam Full Divergence Angle :

    <2mrad
  • Beam Circularity :

    >90%
  • Pulse-to-Pulse Stability :

    <2% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift :

    <30μrad/℃
  • Polarization Ratio :

    >100:1
  • Polarization Orientation :

    Horizontal
  • Operating Temp. & RH :

    10℃ to 30℃ | <80%
  • Storage Temp. & RH) :

    -20℃ to 65℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption :

    <500W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

RFH 10W UV laser Cold light source precise cutting fabric

UV laser -cut fabrics can show unique texture and visual effects, enhance the three -dimensional and layered sense of clothing, and also reflect the sense of future sense and fashion.



Fabric is the basic material for clothing design and production. The processing of fabric is an important factor affecting the quality and style of clothing. Traditional fabric processing methods mainly include tailoring, suture, scalding, embroidery, etc. Although these methods are enduring, there are some limitations, such as low efficiency, poor accuracy, large destruction, single style, etc.



With the development of science and technology and market demand, a new type of fabric processing method -ultraviolet laser cutting -gradually attracted people's attention and application.



RFH UV laser cutting is a technique of cutting or carving the fabric with high energy, high -density, and short -wavelength laser beams emitted by ultraviolet laser. UV laser is a solid laser that has the characteristics of peak power, high repeated frequency, and high single pulse energy.



Small and avant -garde RFH S9 series UV laser:

The video uses 10W UV lasers for cutting. You can choose a small S9 series pulse ultraviolet solid laser with a small volume, exquisite design, and stable light. The working power of 3W ~ 10W can meet the basic needs of fabric cutting.



Compared with the same type of products, the RFH S9 series adopts a small and clever design. Users do not need to make a large light road, which can greatly reduce costs and save space.



In addition, the S9 ultraviolet laser is not only small in size, but also the cavity structure is more stable than similar products and has stronger expansion.



High -power UV laser preferred:



If you want higher efficiency, or high -power ultraviolet laser with 10W ~ 15W, RFH Expert III 355 high -power UV solid laser may be the best choice.



RFH Expert III 355 High -power UV solid laser, adopts unique laser cavity design, sound light q technology, and high -precision cooling system, small volume and high integration. In terms of cutting accuracy, it has superior beam quality (M² <1.2) and perfect light spots characteristics (ellipse degree of light spots> 90%).



At the same time, the pulse width of the RFH Expert III <25ns@50K, the heat affects the area of the heat during processing is very small, the edge of the fabric cutting the edges is smooth and smooth, and the hairless spines are fused.



Compared with traditional thermal cutting or mechanical cutting, ultraviolet laser cutting has the following advantages:



High accuracy: UV laser cutting can realize the accuracy of the sub -millimeter or even nano -level, which can be cut or carved arbitrarily and pattern on the fabric to meet various complex and fine design needs.



Fast: UV laser cutting can achieve high -speed scanning and positioning, greatly improving processing efficiency and quality, saving time and cost.



Small destructive: UV laser cutting is a cold processing method that does not have armal impact or mechanical pressure on the fabric, will not cause burnt or deformed edges, maintaining the original texture and color of the fabric.



Environmental safety: UV laser cutting does not produce harmful gases or dust, does not pollute the environment or endangers human health, and conforms to the concept of green manufacturing.



UV laser cutting has been widely used on various types of fabrics, such as cotton, hemp, silk, leather, denim, chemical fiber, etc. It can achieve a variety of process effects such as hollowing, perforation, carving, and tassels of fabrics, providing more creative space and expression means for clothing designers.



UV laser cutting is a new type of fabric processing. It has the advantages of high precision, high efficiency, low destruction, environmental protection and safety, etc. It can achieve a variety of process treatment of fabrics, providing more possibilities for clothing designers to provide more likely And creativity.



With the advancement of science and technology and market demand, the application of ultraviolet laser cutting technology in the field of fabric processing will be more extensive and deeper, and it has even become one of the important technologies for clothing design and production.
