10W-15W uv laser

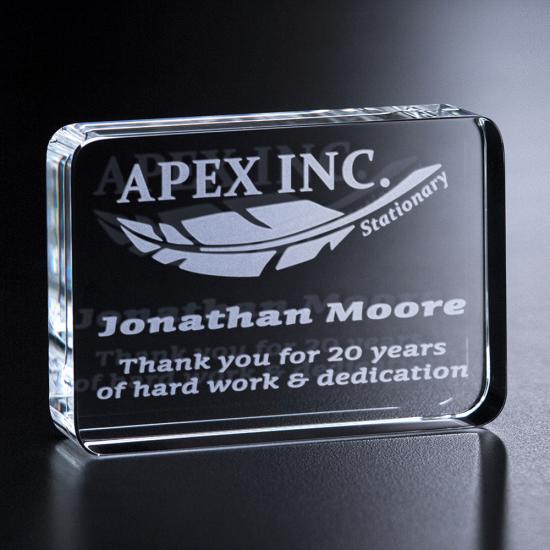

Nanosecond UV lasers for acrylic marking

Acrylic, with its exceptional clarity, durability, and versatility, has become the material of choice for a wide range of applications, from signage and displays to electronic components and decorative items. As industries strive for perfection and seek innovative ways to mark and personalize acrylic products, nanosecond UV laser technology emerges as a game-changer, offering unmatched precision and efficiency.



  • Laser Wavelength:

    354.7nm
  • Average Output Power :

    10W/12W/15W @40kHz
  • Pulse Width:

    <20ns @40kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Spatial Mode:

    TEM00
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter:

    0.8±0.1mm Measured at window
  • Beam Full Divergence Angle :

    <2mrad
  • Beam Circularity:

    >90%
  • Pulse-To-Pulse Stability:

    <3% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift:

    <25μrad/℃
  • Polarization Ratio:

    >100:1
  • Polarization Orientation:

    Horizontal
  • Operating Temp. & RH:

    10℃ to 35℃ | <80%
  • Storage Temp. & RH:

    10℃ to 35℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption:

    <800W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

Nanosecond UV lasers for acrylic marking

Nanosecond UV Lasers: Revolutionizing Acrylic Marking with Unparalleled Precision

Acrylic, with its exceptional clarity, durability, and versatility, has become the material of choice for a wide range of applications, from signage and displays to electronic components and decorative items. As industries strive for perfection and seek innovative ways to mark and personalize acrylic products, nanosecond UV laser technology emerges as a game-changer, offering unmatched precision and efficiency.



Nanosecond UV lasers are a cutting-edge technological marvel that has transformed the world of acrylic marking. These lasers harness the power of ultraviolet light, operating at incredibly short pulse durations measured in nanoseconds. This rapid and precise energy delivery allows for swift and efficient marking on acrylic surfaces, essential qualities for industries requiring high-volume production and fast turnaround times.



One of the key advantages of nanosecond UV lasers lies in their ability to generate incredibly fine and detailed markings on acrylic. The ultraviolet wavelength enables the laser beam to focus tightly, resulting in intricate patterns, texts, logos, and even barcodes with remarkable clarity and accuracy. From delicate engravings on acrylic jewelry to complex serial numbers on electronic displays, nanosecond UV lasers ensure every mark is precisely etched, adding a touch of elegance and sophistication to acrylic products.

Furthermore, nanosecond UV lasers offer versatility that surpasses other marking methods. The adjustable pulse duration and energy density allow for customization, catering to various acrylic thicknesses and types. Whether it's a glossy surface, matte finish, or clear acrylic, the laser adapts effortlessly, ensuring consistent quality and legibility across different materials. This adaptability opens up a world of possibilities for acrylic manufacturers, enabling them to meet diverse customer demands and expand their product offerings.



The speed and efficiency offered by nanosecond UV lasers are unparalleled. With rapid pulse rates and high repetition frequencies, these lasers can complete complex marking tasks in a fraction of the time required by traditional methods. Gone are the days of cumbersome and time-consuming processes. Nanosecond UV lasers streamline production, eliminating bottlenecks and optimizing output, making them invaluable tools for high-volume acrylic manufacturing.



Durability is another standout feature of nanosecond UV laser markings on acrylic. The intensity of the laser effectively bonds with the material, creating long-lasting and resilient marks that withstand abrasion, chemical exposure, and environmental factors over time. Whether exposed to harsh sunlight or subjected to daily wear and tear, nanosecond UV laser markings on acrylic retain their integrity, ensuring clear visibility and maintaining the product's aesthetic appeal.



Safety and environmental considerations are paramount in today's manufacturing landscape, and nanosecond UV laser technology excels in both areas. Unlike solvent-based or chemical-intensive marking methods, these lasers operate without the need for consumables or additional substances, rendering them eco-friendly and reducing the risk of harmful emissions. Additionally, the laser's non-contact nature eliminates any physical stress or deformation on the acrylic surface, ensuring the integrity of the material remains intact.



As industries continue to seek flawless acrylic marking solutions, nanosecond UV lasers have revolutionized the artistry and precision of acrylic customization. Their exceptional precision, versatility, speed, durability, and eco-friendliness make them the preferred choice for manufacturers and designers looking to elevate their acrylic products to new heights.



From signage companies and electronics manufacturers to architectural firms and art studios, nanosecond UV laser technology empowers businesses to create personalized, branded, and highly detailed markings on acrylic. This level of customization not only enhances the visual appeal of the products but also reinforces brand recognition, increases product value, and fosters customer loyalty.



As acrylic continues to dominate various industries, nanosecond UV laser technology stands at the forefront, reshaping the possibilities of acrylic marking and engraving. With its incredible precision, adaptability, efficiency, durability, and environmentally-conscious approach, nanosecond UV lasers have opened up a realm of creative and functional opportunities, ensuring that acrylic products make an indelible impression in today's competitive market.



As this technology continues to evolve, one can only anticipate even more extraordinary advancements that will shape the future of acrylic marking, introducing groundbreaking possibilities and further pushing the boundaries of excellence in acrylic product customization an

Expert III 355 series UV DPSS laser, developed and produced by RFH, covers 10w-20w in laser power with short pulse width (<20ns@40K) ,superior beam quality (M²<1.2) and perfect laser spot quality (beam circularity >90%). It is widely used in PE/PCB/FPC cutting, glass & sapphire cutting, drilling, scribing & cutting used in high precision micromaching areas.

UV LASER



Expert III 355 series uv laser characteristics:

1. 355 nm output wavelength, 10 to 200 Hz repetition rate; laser power ranging from 10w-20w; Continuous tuning of repetition rate while maintaining constant pulse energy, superior beam pointing and energy stability make the Expert III 355 the first choice for micromachining, marking and thin film removal applications



2. Exceptional beam quality (M²<1.2) ,absolutely assured in all repetition rates; relatively short pulse width <20ns@40K with little heat transfer to surrounding material; perfect beam spot quality(Beam Circularity>90%)

Close to Gaussian smooth beam profile with low value M² < 1.2 and good focusability are beneficial for applications such as



3. Unique Q-switching technology, adapts a variety of control requirements of laser applications;Online refreshment for harmonic coupling technology;Excellent long term power stability Rugged sealed cavity, Extremely compact size, Simple and robust



4. Digital control technology for the driver,  RS232 control interface ensures easy control and integration with laser marking equipment



5. This laser adopts one - style design with compact and reasonable structure, easy installation.

Easy to transport and saves space due to compact and light design



Water cooling,cost-effective and reliable end-pumping technology and amplifier-free DPSS design guarantee easy operation and alignment simple installation and low maintenance costs



6. Industrial production process control technology,provides quality stable products.

Nanosecond UV Laser

Nanosecond UV Laser



 RFH - The leading industrial solid-state laser manufacturer



For over 13 years with excellent long term stability and exceptional good beam quality



Production in dust-free plant & rigorous quality control system

From purchasing, pre-production quality check, assembling, finished product testing, warehouse-in inspection, pre-delivery testing to after-sales service, each step is under control to make sure product quality and consistency in both machine parameters and actual running parameters. This is what makes RFH laser lasts longer than its peers.

RFH LASER

Top professional team, independent R&D in laser oriented power supply control system



There is a one-to-one correspondence between power supply and laser. The stability of power supply control system determines if the laser can maximize its performance during operation. RFH Laser has independent R&D in power supply technique which enables timely update and improvement of power supply control system module based on the laser’s need. 12-year experience in R&D and a top professional team make RFH laser a reliable and stable laser system.

LASER POWER SUPPLY

Core components of oversea brands with guaranteed quality

Pumping, Q-switching and other core components adopt oversea brands. Work with top brand component suppliers of home and abroad. Each component is guaranteed with its quality from the beginning of materials purchasing. This is why users can trust RFH laser.

Nanosecond UV Laser



UV laser+power supply+cooling system sold in a group

Being client-oriented, RFH offers proposal of selling the whole laser system in a group so that the laser system can maximize its performance while maintaining its stability.

Nanosecond UV Laser



Full-digital display, supporting communication with computer, capable of laser’s remote control

Each laser developed and produced by RFH can always remain high quality in industrial and extreme conditions of scientific research. With stable beam quality, high efficiency, best cost performance and high reliability, RFH has earned good reputation in different industries at home and abroad. After 12-year development, RFH has become a reputed brand in nanosecond laser industry.

UV LASER
