10W-15W uv laser

Introducing the Exquisite Artistry of RFH Brand's 355nm UV Laser Glass Marking

In the realm of precision and finesse, RFH brand emerges as a visionary leader, carrying the torch of mastery in the art of 355nm UV laser glass marking. With unrivaled expertise and cutting-edge technology, RFH brand's endeavor reaches new heights, showcasing an exquisite fusion of science and aesthetics.



  • Laser Wavelength:

    354.7nm
  • Average Output Power :

    3W-10W @30kHz
  • Pulse Width:

    <12ns @ 30kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter :

    0.8±0.2mm Measured at window
  • Beam Full Divergence Angle :

    <2mrad
  • Beam Circularity :

    >90%
  • Pulse-to-Pulse Stability :

    <2% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift :

    <30μrad/℃
  • Polarization Ratio :

    >100:1
  • Polarization Orientation :

    Horizontal
  • Operating Temp. & RH :

    10℃ to 30℃ | <80%
  • Storage Temp. & RH) :

    -20℃ to 65℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption :

    <500W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

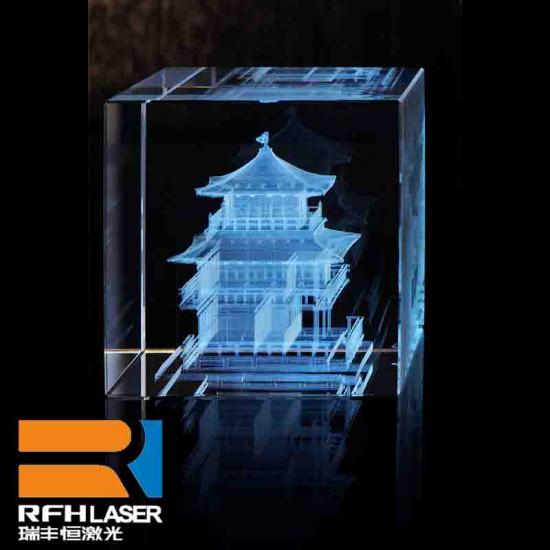

Introducing the Exquisite Artistry of RFH Brand's 355nm UV Laser Glass Marking

engraving glass

In the realm of precision and finesse, RFH brand emerges as a visionary leader, carrying the torch of mastery in the art of 355nm UV laser glass marking. With unrivaled expertise and cutting-edge technology, RFH brand's endeavor reaches new heights, showcasing an exquisite fusion of science and aesthetics.



Harnessing the immense power of ultraviolet light, RFH brand's 355nm UV laser glass marking evokes a symphony of radiance upon delicate glass surfaces. Every stroke of the laser beam unveils a universe of intricate patterns, etching a tale of sophistication. As the beam dances gracefully, it leaves behind a trail of mesmerizing marks, each one embodying the craftsmanship of RFH brand.

The marriage of precision and versatility lies at the core of RFH brand's laser glass marking technique. With meticulous attention to detail, they harness the laser's focused energy to carve intricate designs, effortlessly transcending the limits of conventional methods. From delicate crystal vases to intricate glass sculptures, RFH brand's 355nm UV laser glass marking breathes life into every piece, transforming it into a masterpiece.



Beyond its aesthetic prowess, RFH brand's 355nm UV laser glass marking boasts durability that withstands the test of time. Each stroke of the laser beam creates a bond between the glass and the mark, ensuring a lasting legacy of artistry. The markings, resistant to fading, remain resilient, a testament to the excellence of RFH brand's mastery.



As pioneers in their field, RFH brand continues to push the boundaries of innovation. Their relentless pursuit of perfection is evident in their dedication to continuous improvement and refined techniques. With every project, RFH brand strives to surpass their own achievements, setting new standards in the realm of laser glass marking.



In the realm of creative expression, RFH brand's mastery shines forth as a beacon of inspiration. Guided by the hands of their skilled artisans and propelled by their unwavering passion for perfection, RFH brand's 355nm UV laser glass marking unveils a world of beauty previously unseen.
