10W-15W uv laser

Finnish laser marking machine customer purchases 355nm UV laser to remove metal surface coating

A laser marking machine customer in Finland recently attracted the attention of the industry. They decided to purchase a 355nm UV laser to meet the needs of metal surface coating removal. This is a completely new field of application, and the introduction of laser technology has brought unprecedented efficiency and precision to the removal of metal surface coatings.

  • Laser Wavelength:

    354.7nm
  • Average Output Power :

    3W-10W @30kHz
  • Pulse Width:

    <12ns @ 30kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter :

    0.8±0.2mm Measured at window
  • Beam Full Divergence Angle :

    <2mrad
  • Beam Circularity :

    >90%
  • Pulse-to-Pulse Stability :

    <2% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift :

    <30μrad/℃
  • Polarization Ratio :

    >100:1
  • Polarization Orientation :

    Horizontal
  • Operating Temp. & RH :

    10℃ to 30℃ | <80%
  • Storage Temp. & RH) :

    -20℃ to 65℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption :

    <500W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

Finnish laser marking machine customer purchases 355nm UV laser to remove metal surface coating



A laser marking machine customer in Finland recently attracted the attention of the industry. They decided to purchase a 355nm UV laser to meet the needs of metal surface coating removal. This is a completely new field of application, and the introduction of laser technology has brought unprecedented efficiency and precision to the removal of metal surface coatings.

Metal surface coating plays an important role in protection and beautification in industrial production. However, over time, these coatings may be affected by wear, oxidation, or other factors and require maintenance or replacement. Traditional surface coating removal methods are usually time-consuming and ineffective, and the emergence of laser technology provides a fast and efficient solution to this problem.



The Finnish customer successfully applied the 355nm ultraviolet laser to the metal surface coating removal process by introducing it. The high energy density and short pulse width of this UV laser, combined with excellent beam quality and stability, make precise ablation work feasible and easy.

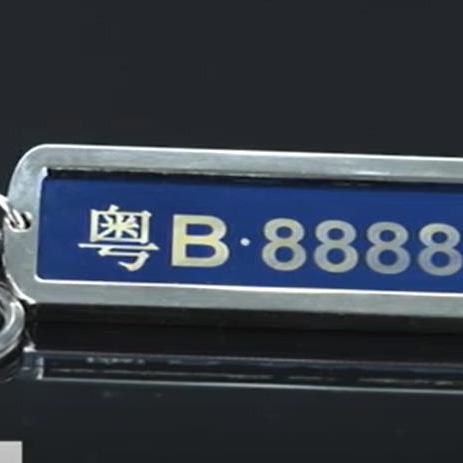

Through instantaneous high-energy focusing, the ultraviolet laser can evaporate, peel off or peel off the metal surface coating, revealing the original metallic luster. Compared with traditional removal methods, laser technology can better control the processing depth and removal position to avoid unnecessary damage to the substrate. This not only improves work efficiency and quality, but also reduces damage to the environment.



The application of laser technology also brings a series of other advantages. For example, UV lasers are capable of processing many types of metals, such as stainless steel, aluminum alloys, and titanium alloys, making them versatile and flexible. In addition, due to the high reliability and stability of the laser, customers can reduce maintenance costs and equipment downtime, and improve production efficiency and economic benefits.



The Finnish customer's decision is not only to meet the needs of a surface coating removal, but also reflects the keen insight into technological development and the relentless pursuit of high-quality craftsmanship. The application prospects of laser technology in the metal industry are exciting and bring more innovative possibilities for other industries. I believe that the application of lasers in the field of metal surface coating removal will continue to promote the development of the industry and create more business opportunities and value for customers.
