10W-15W uv laser

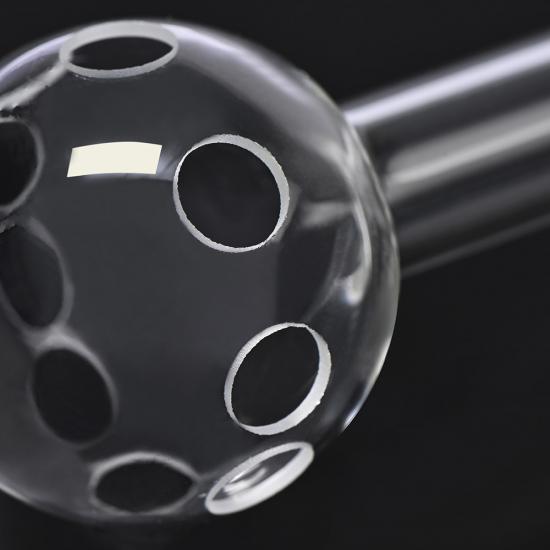

Cutting glass with 35w high power green laser

Glass cutting has always been a delicate and intricate process, requiring precision and finesse. Traditional methods often involve manual scoring and breaking, which can be time-consuming and may result in imperfect cuts. However, with advancements in laser technology, cutting glass has become more efficient and precise. In this article, we will delve into the world of cutting glass using a 35W high power green laser, exploring its benefits, applications, and considerations.



  • Laser Wavelength:

    532nm
  • Average Output Power :

    35W @50kHz
  • Pulse Width:

    <25ns @50kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Spatial Mode:

    TEM00
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter:

    1.0±0.2mm Measured at window
  • Beam Full Divergence Angle :

    <1.2mrad
  • Beam Circularity:

    >90%
  • Pulse-To-Pulse Stability:

    <2% RMS/@30kHz
  • Average Power Stability :

    <3% RMS/8hr
  • Beam-Pointing Drift:

    <30μrad/℃
  • Polarization Ratio:

    >100:1
  • Polarization Orientation:

    Horizontal
  • Operating Temp. & RH:

    10℃ to 35℃ | <80%
  • Storage Temp. & RH:

    -20℃ to 65℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption:

    <800W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

Exploring the Possibilities of Cutting Glass with a 35W High Power Green Laser



Glass cutting has always been a delicate and intricate process, requiring precision and finesse. Traditional methods often involve manual scoring and breaking, which can be time-consuming and may result in imperfect cuts. However, with advancements in laser technology, cutting glass has become more efficient and precise. In this article, we will delve into the world of cutting glass using a 35W high power green laser, exploring its benefits, applications, and considerations.





Understanding the 35W High Power Green Laser:





A 35W high power green laser is a cutting-edge tool that utilizes a green laser beam to cut through various materials, including glass. This type of laser operates at a wavelength of around 532nm, which is highly absorbed by glass, making it an ideal choice for glass cutting applications. The 35W power output ensures sufficient energy to achieve clean and precise cuts, while the green laser beam provides excellent visibility, aiding in accurate positioning and alignment.





Benefits of Using a 35W High Power Green Laser for Glass Cutting:





1. Enhanced Precision: The focused green laser beam allows for precise control over the cutting process, resulting in clean and accurate cuts. This level of precision is particularly crucial when working with intricate glass designs or delicate materials.





2. Reduced Processing Time: Compared to traditional glass cutting methods, a 35W high power green laser can significantly reduce processing time. The laser beam cuts through glass quickly and efficiently, allowing for increased productivity and shorter production cycles.





3. Minimal Material Waste: Laser cutting offers a non-contact cutting method, meaning there is no physical contact between the laser and the glass surface. This eliminates the risk of chipping or cracking, resulting in minimal material waste and higher yield rates.





Applications of Cutting Glass with a 35W High Power Green Laser:





1. Art and Design: The precision and versatility of a 35W high power green laser make it an excellent tool for artists and designers working with glass. Intricate patterns, custom shapes, and detailed engravings can be easily achieved, opening up a world of creative possibilities.





2. Electronics Industry: Glass substrates are commonly used in the electronics industry for various applications, such as display panels and touchscreens. The use of a 35W high power green laser ensures precise cutting of these delicate glass components, contributing to the production of high-quality electronic devices.





Considerations for Cutting Glass with a 35W High Power Green Laser:





1. Safety Measures: Laser cutting involves the use of high-powered lasers, which can pose risks if not handled properly. It is essential to follow safety guidelines, wear appropriate protective gear, and ensure a controlled environment to minimize any potential hazards.





2. Material Compatibility: While a 35W high power green laser is suitable for cutting most types of glass, it is essential to consider the specific composition and thickness of the glass being cut. Some types of glass may require adjustments in laser power or cutting parameters to achieve optimal results.





Cutting glass with a 35W high power green laser offers numerous advantages, including enhanced precision, reduced processing time, and minimal material waste. This technology finds applications in various industries, from art and design to electronics manufacturing. However, it is crucial to prioritize safety and consider the compatibility of the glass being cut. With proper precautions and expertise, the 35W high power green laser can revolutionize the glass cutting process, opening up new possibilities for creativity and efficiency.
