UV-Laser
UV-Laser features
- Compact-sized laser unit
- Low cost

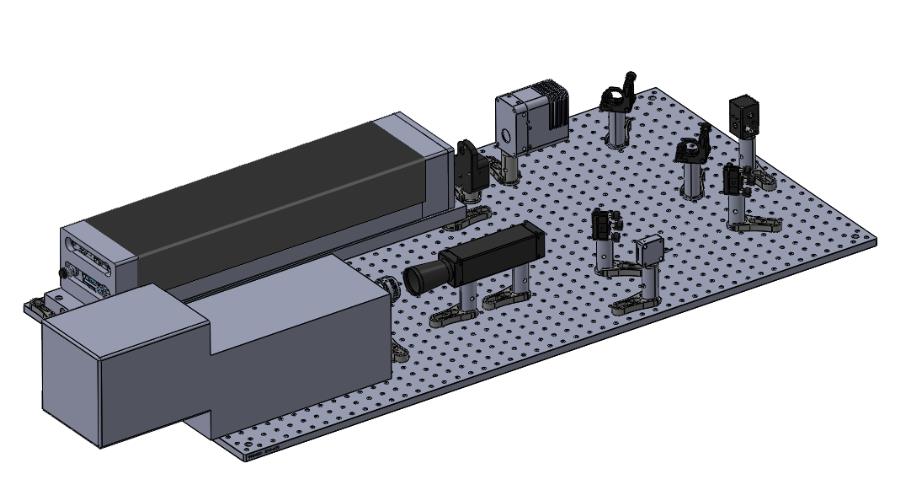

- Available product design:laser unit, optical laser system
LD solid-state laser specifications
LLO Polyimide Damage
Supported by JKA and its promotion funds from KEIRINRACE
Application
- Laser debonding
- Laser lift-off (LLO)
- ITO Removal
- Micro via hole drilling
- Polyimide cutting and drilling
- Analysis / spectroscopy
UV-Laser Lineup
| QLA-355 | QLA-266 | |
| Wavelength | 355nm | 266nm |
| Average Output Power | 15W@50kHz | 2.5W@30kHz |
| Maximum Pulse Energy | 400μJ | 90μJ |
| Minimum Pulse Width | <8ns | <7ns |
| Beam Quality | TEM00 M2<1.3 | TEM00 M2<1.5 |
| Beam Diameter | ～0.8mm | ～0.8mm |
| Power Consumption | 300W | 300W |
Today,we will recommend you RFH UV laser brand from China.
RFH UV Laser Marking Module used for paint stripping on plastic
S9 Series 3W 5W 10W UV Laser
To meet the market demand, RFH newly developed S9 series UV laser in 2020. Comparing with its kinds, S9 series UV laser features with rugged sealed cavity, extremely compact size, simple and robust, high stability, high efficiency, high reliability and excellent laser beam quality.Its compact design suggests no necessity in building big light path, which greatly reduces space and cost and makes it easy to be installed into UV laser marking machines. In addition, S9 series cavity structure is more stability and more excellent scalability, which means the same laser cavity can be produces multi-power lasers , and the stability of different power ranges is greatly improved
